Architectural Guide to Hidden Doors: Concealed Hinge Systems and Comparison

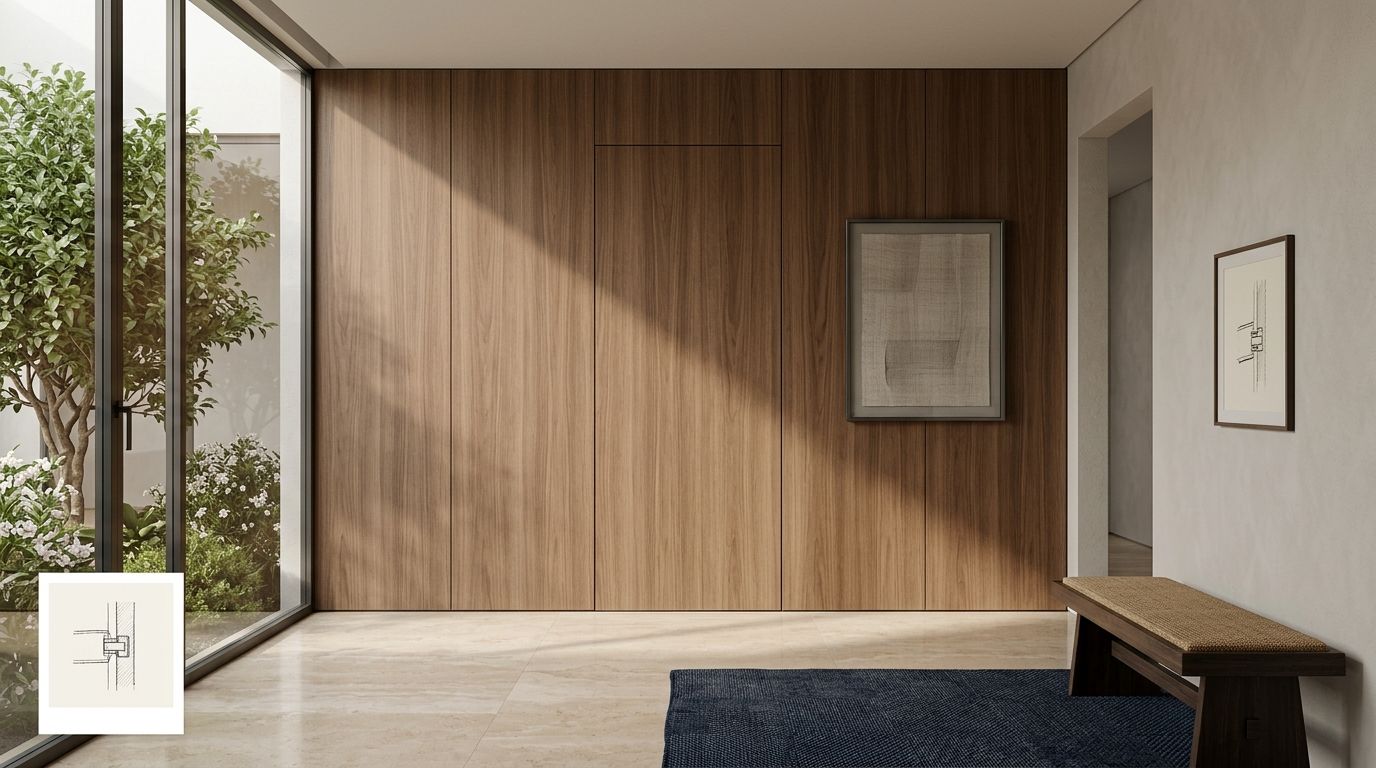

Hidden doors create uninterrupted wall planes, masking utility spaces, private quarters, or pantries behind continuous architectural surfaces. Achieving this flush visual alignment requires millimetre-level precision, specialized framing, and the correct concealed hinge hardware.

In high-end residential and commercial interiors, conventional door frames and exposed barrel hinges fragment clean planes. When an interior brief demands unbroken wood panelling, plaster, or stone finishes, flush secret doors become an essential architectural detail rather than a mere novelty.

What Are Hidden Doors and Why Are They Specified?

Hidden doors are frameless, flush-to-wall door panels designed to visually blend into adjacent wall finishes when closed. They eliminate architraves, door casings, and projecting knuckle hinges to preserve architectural continuity and clean spatial proportions.

Beyond their discreet appearance, flush-concealed doors offer practical spatial benefits in modern interiors:

• Visual boundary control: They conceal secondary spaces like powder rooms, sculleries, server closets, or safe rooms without cluttering main sightlines.
• Wall finish continuity: Continuous timber battens, millwork veneers, or monolithic plaster finishes can extend across the door face without awkward trims.
• Spatial efficiency: Flush frames integrate into standard partition depths (typically 100mm to 150mm), saving circulation clearances.
• Acoustic and air isolation: When engineered with concealed perimeter drop seals, hidden doors provide acoustic attenuation of 32 dB to 44 dB without bulky surface seals.

In our experience with residential projects, concealing utility doors elevates the perceived volume of living spaces, allowing prominent architectural elements like art walls and bespoke glazing to command attention. You can explore how we handle material transitions across our portfolio in our projects.

How Do Concealed Hinge Systems Work?

Concealed hinges mortise fully inside the door leaf edge and the door jamb, leaving zero hardware visible on either side when the door is closed. They operate on scissor-like multi-pivot arms or knuckle assemblies engineered to swing the door cleanly past the frame.

Unlike standard butt hinges that pivot along an exterior fixed pin, a concealed hinge shifts the swing axis outward as the door opens. This clearing action prevents the door edge or any panel cladding (up to 3mm to 8mm thickness) from binding against the jamb.

Most modern architectural hinges feature 3D adjustability, allowing independent calibration along three axes:

1. Vertical adjustment (typically ±2.5mm to ±3.0mm): Corrects door drop or settlement.
2. Horizontal adjustment (typically ±1.5mm to ±3.0mm): Centers the door leaf within the jamb gap.
3. Depth adjustment (typically ±1.0mm): Aligns the door face perfectly flush with the adjacent wall.

Which Concealed Hinge Brands Lead the Market?

Four manufacturers dominate the concealed hinge category: SOSS, Simonswerk (Tectus), Sugatsune (HES series), and Ceam. Each engineering approach balances load capacity, adjustability, durability, and installation complexity differently.

1. SOSS Invisible Hinges

SOSS is the original invisible hinge pioneer, patented by Joseph Soss in 1903. Built with laminated steel and zinc alloy plates, SOSS hinges slide along internal tracks rather than pivoting on exposed joints.

• Strengths: Exceptional tensile strength, classic pedigree, and relatively compact mortise depths (from 25mm). Model 218 is a standard choice for medium-weight doors up to 45 kg with two hinges.
• Weaknesses: Traditional SOSS hinges lack 3D adjustability once installed. If the door leaf settles or the rough opening shifts by 1mm, adjustments require shimming the mortise pocket or planing the timber.
• Best for: Millwork panels, cabinetry, and fixed timber applications where seasoned hardwoods guarantee zero structural movement.

2. Simonswerk Tectus

Simonswerk, engineered and manufactured in Germany, represents the global benchmark for concealed architectural door hinges through its Tectus series.

• Strengths: True, effortless 3D adjustability using simple Allen keys; maintenance-free slide bearings that never require lubrication; and remarkable load ratings. The Tectus TE 340 3D supports doors up to 80 kg per pair, while heavy-duty models like the TE 640 3D accommodate door leaves up to 200 kg.
• Weaknesses: Substantially higher cost per unit (often $120 to $280 per hinge) and deeper mortise pockets (up to 38mm), requiring robust timber or metal jamb preparation.
• Best for: High-traffic residential portals, full-height floor-to-ceiling doors, and heavy clad panels where long-term plumb alignment is non-negotiable.

3. Sugatsune (LAMP HES Series)

Japanese hardware specialist Sugatsune manufactures the HES series of concealed 3D adjustable hinges, recognized for surgical machining tolerances and sleek knuckle profiles.

• Strengths: Slim mortise profiles that fit narrower door leaves (as thin as 29mm for HES3D-90, compared to 38mm minimum for standard Tectus hinges). The HES3D-160 model holds up to 100 kg with three hinges and provides exceptionally smooth mechanical travel.
• Weaknesses: Slightly more visible clearance gap at maximum 180-degree swing than Simonswerk.
• Best for: Minimalist residential doors, custom joinery, and thinner contemporary partition systems.

4. Ceam

Manufactured in Italy, Ceam produces refined architectural hinges (such as the Ceam 1430 and 1130 series) catering to custom European door systems.

• Strengths: Clean aesthetic faceplates with concealed screw clips, solid alloy construction, and competitive pricing relative to German manufacturers.
• Weaknesses: Lower domestic inventory availability outside continental Europe; load thresholds are slightly lower for standard models.
• Best for: Standard interior passage doors and bespoke European-style flush doors.

Which Competitor Has the Best Concealed Hinge?

Simonswerk Tectus is the best concealed hinge for heavy architectural doors, while Sugatsune HES is the best choice for slim door leaves and detailed joinery. SOSS remains respected for traditional cabinetry but lacks the post-installation micro-adjustments essential for full-height architectural doors.

Our team typically recommends Simonswerk Tectus TE 340 3D or TE 540 3D for private residences. When dealing with timber doors taller than 2400mm or weighing over 60 kg, seasonal humidity will inevitably cause subtle expansion or contraction. The ability for an installer or maintenance technician to correct a 1.5mm reveal in two minutes without removing the leaf saves hours of field troubleshooting.

To cross-reference hardware standards and testing classifications for continuous load cycles, consult the ANSI/BHMA A156.1 standard for door hinges.

Where Can Hidden Doors Be Implemented in Architecture?

Hidden doors suit perimeter transitions where traditional framed doors break the rhythm of an interior composition. Ideal spatial applications include:

• Pantry and Back-Kitchen (Scullery) Access: Disguising kitchen support spaces behind continuous joinery cabinetry leaves the show kitchen uncluttered.
• Primary Bedroom Dressing Suites: Concealing en-suite walk-in closets or bathroom entries behind accent timber panelling.
• Private Studies and Executive Offices: Creating quiet library book-matched panel doors that pivot silently.
• Corridor Service Access: Hiding electrical sub-panels, AV racks, HVAC access points, and basement stairwells along central circulation spines.

When planning complex interior layouts, you can outline your room functions and door requirements early using our project brief builder.

What Structural and Framing Details Are Required?

A hidden door requires a rigid structural rough opening with deflection tolerances of less than 2mm along the entire frame height. Standard lightweight stud framing without reinforced headers or structural steel stiffeners will flex under load, causing reveals to bind.

To ensure flawless execution, three detailing rules are critical:

1. Pre-formed aluminum pocket frames: Use proprietary flush frame systems (such as EzyJamb, Rocket Frame, or custom aluminum extrusions) that incorporate drywall bead returns. This eliminates plaster hairline cracking around the jamb perimeter.
2. Engineered door cores: Never hang solid unbraced timber slabs for flush doors over 2200mm high. Use hollow-core sandwich panels reinforced with solid timber stiles, aluminum stabilizing rods, or engineered timber cores to prevent bowing.
3. Hinge quantity and placement: For doors up to 2100mm, three hinges are standard. For doors between 2100mm and 2700mm, specify four hinges, grouping two hinges near the top quadrant where rotational tension is highest.

For more on how detailing affects structural and interior costs, review our construction cost calculator or read our dedicated guides on architecture services.

Common Mistakes to Avoid

• Ignoring door leaf weight: Calculating hinge counts based on the raw timber slab while forgetting heavy cladding finishes (such as mirrors, marble veneer, or solid acoustic battens) leads to premature hinge sag.
• Omitting 3D adjustable hardware: Selecting non-adjustable SOSS hinges for full-height doors in climates with high seasonal humidity fluctuations.
• Failing to plan handle latches: Using a traditional projecting lever handle ruins the hidden door effect. Specify touch-latches, magnetic recessed pulls, or concealed magnetic locks like the Bonaiti magnetic latch.
• Painting over hinge bodies: Allowing painters to spray over concealed hinge adjustment screws or pivot knuckles impairs their mechanical action.

Frequently Asked Questions

Can concealed hinges support heavy solid wood doors?

Yes, heavy-duty concealed hinges such as the Simonswerk Tectus TE 640 3D or SOSS Model 220 can carry door weights exceeding 150 kg to 200 kg when framed with appropriate structural steel or timber jambs.

What is the ideal perimeter reveal gap for a hidden flush door?

The standard perimeter shadow gap for a flush frameless door is between 3mm and 4mm. Gaps smaller than 3mm risk rubbing due to thermal expansion, while gaps larger than 4.5mm destroy the optical illusion of a continuous wall.

Do hidden doors require specialized latch hardware?

Yes, secret doors perform best with concealed magnetic latches, concealed door closers, or touch-release push-pull hardware that removes the need for protruding handles.

How many concealed hinges are needed per door?

Doors under 2100mm and below 50 kg generally require two to three hinges, while full-height doors between 2400mm and 3000mm require at least four hinges to resist warping.

Can hidden doors be automated or motorized?

Yes, concealed pivot and hidden swing doors can integrate motorized overhead closers and concealed electronic access control strikes for automated smart-home operation.
