Architectural Site Coordination: Translating Drawings into Precise Interior Fit-Outs
How structured architectural site reviews and drawing coordination turn residential interior plans into enduring, precisely built spaces.

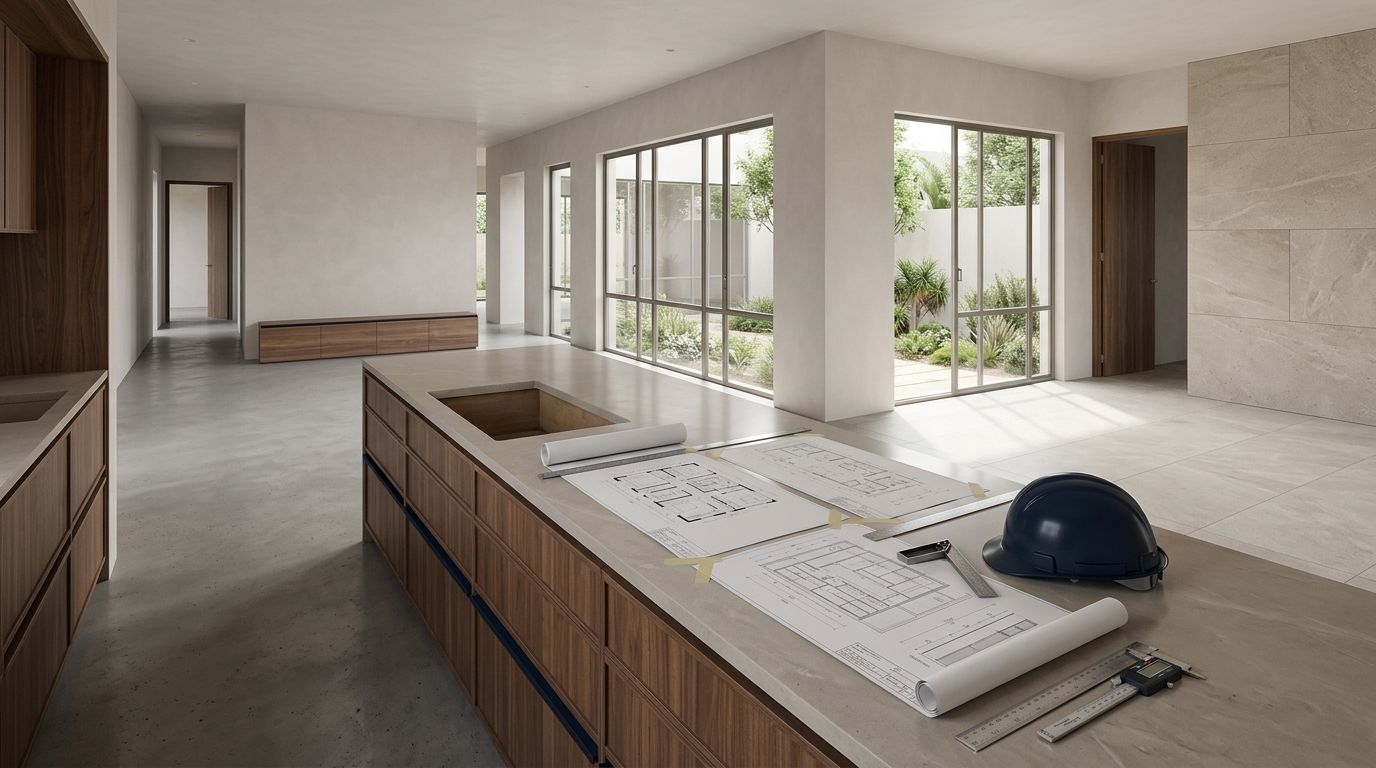

A successful interior does not happen by chance; it is built through relentless site coordination. When architectural floor plans, detailed joinery elevations, and service layouts are unfurled over an active kitchen island or unfinished work surface, the theoretical clarity of design meets the physical reality of construction.
In high-end residential architecture, the gap between a design drawing and the finished space is where quality is won or lost. Millimeter-level alignments, material transitions, and integrated services require regular on-site review. Without systematic architectural oversight, even the most considered design concepts get compromised during execution.
Why Is Architectural Site Coordination Essential During Fit-Out?
Architectural site coordination resolves discrepancies between 2D drawings and real site conditions before trades execute work that is costly to alter. It protects design intent, verifies spatial tolerances, and ensures MEP services integrate cleanly within custom joinery and finishes.
Even with precise digital modeling, real buildings have structural variations. Plastered masonry walls are rarely perfectly plumb, floor slabs have minor deflections, and service rough-ins can shift by 10 to 30 millimeters during initial installation. On-site reviews allow the architect to inspect physical alignments directly, cross-referencing printed tender drawings with actual dimensions.
Key areas resolved through regular site coordination include:
- Verifying horizontal and vertical datum lines across open-plan living and kitchen spaces.
- Aligning service cutouts for plumbing, gas, and power before fabricating 20mm engineered quartz or natural stone slabs.
- Checking cabinet carcass depths (standard 600mm for base units and 350mm for overheads) against actual wall straightness.
- Resolving material junctions between large-format porcelain floor tiles (typically 1200x600mm) and custom perimeter joinery.
On projects where we deliver comprehensive architecture services, on-site drawing coordination acts as the critical bridge between the design studio and the master craftsman.
How Do Architects Translate Detailed Drawings to the Worksite?
Architects translate drawings to the worksite by establishing benchmark datum lines, reviewing 1:20 joinery details with trade supervisors, and verifying clearances directly against physical carcasses. This ensures every trade works from a shared spatial reference rather than isolated assumptions.
During a fit-out review, the architectural team spreads the master drawings across an open surface—such as a kitchen island rough-in—to systematically walk the contractor through every junction. In our experience with residential projects in Karachi and across South Asia, physical drawing sets remain the most reliable reference for site supervisors, carpenters, and electrical teams during coordination sessions.
To bridge the gap between paper and build, we establish specific site protocols:
- Establishing the master datum line: A fixed +1000mm reference line marked across all perimeter walls sets the exact level for counter heights (typically 900mm finished), electrical back-boxes, and door head heights (2100mm to 2400mm).
- Reviewing joint reveals and shadow lines: Ensuring shadow gaps of 10mm to 15mm along ceiling perimeters and baseboards are consistently framed.
- Cross-checking appliance cutouts: Matching appliance specification sheets against carcass joinery to maintain minimum 50mm rear ventilation gaps.
- Aligning tile grid layouts: Ensuring tile cuts are balanced symmetrically across main sightlines rather than ending with slivers at visual focal points.
According to standards published by the Chartered Institute of Building, proactive coordination between designers and site teams significantly reduces rework, site waste, and project delay.
What Are the Key Stages of a Structured Fit-Out Site Review?
A structured fit-out review progresses through four distinct phases: MEP rough-in inspection, joinery carcass dry-fit, countertop templating, and final architectural detailing. Staging inspections in this order prevents sequential trades from damaging previously completed work.
Our team typically recommends following these distinct coordination stages:
1. Rough-In and Service Verification
Before cabinetry or wall paneling is installed, the team inspects all 25mm electrical conduit runs, plumbing waste lines (typically 40mm to 100mm UPVC), and HVAC duct drops. Confirming service locations against architectural drawings prevents core-drilling or wall-chasing through finished surfaces later.
2. Carcass Dry-Fit and Leveling
Joinery carcasses are installed and leveled using adjustable legs or treated timber bases. The architect checks overall plumb, straightness, and spacing. In our experience, inspecting carcasses before doors and hardware are fitted allows immediate correction of out-of-square wall conditions.
3. Surface Templating and Substrate Preparation
Before heavy materials like engineered quartz or granite are cut, precise digital or physical templates are made directly over the leveled carcasses. Standards outlined by ASTM International for dimension stone and engineered surfaces emphasize uniform substrate support to prevent cracking along sink and cooktop cutouts.
4. Hardware, Fixtures, and Detail Close-Out
Once primary surfaces are in place, final hardware is fitted: concealed European hinges with 3-way adjustment, soft-close drawer runners rated for 30kg to 50kg loads, and architectural linear drains. The architect conducts a final snagging review against the 1:10 detail sheets.
How Much Budget Should Be Allocated for Architectural Supervision and Fit-Out Management?
Architectural site supervision and construction administration typically account for 10% to 15% of the overall design and management budget. This investment consistently prevents rework costs that can otherwise reach 20% to 25% of total fit-out expenditure.
In Pakistan’s urban residential market, comprehensive interior fit-outs typically range between PKR 4,500 and PKR 9,500 per square foot for premium specifications, depending on material selections, imported hardware, and structural customizations. On an 300 yards or 500 yards home with 6,500 to 9,000 square feet of covered interior area, an uncoordinated site mistake—such as misaligned plumbing stacks or improperly cut stone islands—can easily cost several million rupees to rectify.
You can estimate overall project parameters using our construction cost calculator to align scope, material expectations, and management provisions before breaking ground.
Common Mistakes to Avoid During Interior Site Execution
Execution errors occur when site teams rely on unverified assumptions rather than disciplined drawing cross-checks. Avoiding these common pitfalls ensures the built reality reflects the design intent:
- Skipping physical templating: Ordering stone countertops based purely on CAD drawings rather than on-site physical templates often results in unsightly 10mm caulking gaps at uneven walls.
- Overlooking electrical back-box depths: Installing shallow 35mm wall boxes where smart automation modules or deep dimmer switches require 47mm back-boxes.
- Failing to account for flooring thickness variations: Not adjusting subfloor screeds between 12mm porcelain tiles, 20mm marble, and 15mm engineered timber creates awkward floor level transitions.
- Inadequate ventilation for concealed appliances: Omitting specified 200 sq cm ventilation plenums behind integrated refrigerators leads to premature compressor failure.
- Neglecting expansion tolerances: Fitting large laminate or veneered MDF panels (over 2.4m height) without 2mm to 3mm relief gaps causes warping during humid seasonal shifts.
By examining our completed work across our projects, you can see how meticulous on-site detailing and material discipline create enduring residential spaces.
Frequently Asked Questions
How often should an architect conduct site visits during fit-out?
An architect should conduct weekly site visits during active fit-out phases, increasing to two or three visits per week during service rough-ins, carcass dry-fitting, and stone installations. Critical milestones always require physical sign-off before subsequent trades proceed.
What is the difference between architectural drawings and shop drawings?
Architectural drawings define design intent, spatial proportions, materials, and overall dimensions, while shop drawings are created by fabricators to detail exact manufacturing cuts, jointing methods, and hardware assembly. The architect reviews shop drawings to ensure they align with the original design intent before fabrication begins.
Why are engineered quartz countertops templated after cabinet installation?
Engineered quartz countertops are templated after cabinet installation because cabinets must be permanently leveled and fixed to reveal the true site dimensions and wall variances. Templating over fixed carcasses ensures the stone fabricator cuts precise cutouts and overhangs without relying on estimated dimensions.
What happens if on-site dimensions differ from the architectural floor plans?
When on-site dimensions differ from floor plans, the architect issues an immediate site instruction or revised detail drawing to adjust non-structural elements like filler panels, shadow reveals, or custom joinery. Catching dimensional shifts early prevents structural rework and keeps the project on schedule.
How does poor site coordination affect project timelines?
Poor site coordination creates sequential trade clashes, requiring demolition of completed work, re-ordering of long-lead materials, and repeated site revisits. In our experience, uncoordinated projects experience average timeline overruns of 4 to 8 weeks during the final fit-out stage.
