Clear Height vs. Usable Height: What Clients Need to Know About Ceiling Space

When reviewing architectural drawings, property buyers and building developers frequently mistake overall structural volume for the final space they will experience. A drawing labeled with a 12-foot floor-to-floor height rarely produces a 12-foot ceiling. In practice, the physical components that make a building function—structural beams, air conditioning supply lines, sprinkler headers, lighting fixtures, and drainage slopes—occupy significant vertical real estate.

Understanding the distinction between theoretical clear height and actual usable height is essential during early design. Without careful coordination, the gap between what a client visualizes on paper and what exists after construction can result in compromised spatial proportion, unexpected bulkheads, and lowered ceilings.

What Is the Difference Between Clear Height and Usable Height?

Clear height measures the raw dimension from finished floor to structural slab, while usable clear height is the remaining vertical space after accounting for MEP services, drop ceilings, and fire safety clearances.

In real estate listings and early schematic drawings, clear height is often stated as the distance between the top of one concrete slab and the underside of the slab above. For example, a commercial office or luxury residential floor plate might be designed with an 11-foot-6-inch (3.51-meter) slab-to-slab dimension. However, this raw number does not account for the structural depth of the floor system itself, which may include a 7-inch concrete slab and deep structural beams ranging from 14 to 24 inches.

Usable height—sometimes called finished ceiling height—refers to the clean, unobstructed clearance remaining below the lowest architectural element, light fixture, or sprinkler head. When mechanical services run beneath structural beams without coordination, usable height drops significantly. A project that starts with an 11-foot-6-inch structural clearance can easily shrink to an 8-foot-6-inch finished ceiling if the ceiling plenum is not tightly engineered.

How Much Vertical Space Do MEP Systems Actually Consume?

Mechanical, electrical, and plumbing (MEP) services typically require 18 to 36 inches of vertical ceiling depth, depending on duct sizing, structural beam cross-overs, and light fixture recessed depths.

Every building service competes for space in the ceiling plenum. The mechanical system represents the largest single user of vertical volume:

• HVAC Ductwork and Insulation: Primary air distribution ducts generally measure 10 to 18 inches in depth. When wrapped in 1 to 2 inches of external thermal insulation and supported by hanging brackets, a main supply trunk routinely consumes 14 to 22 inches of vertical clearance.
• Fire Suppression Systems: Main sprinkler lines and branch piping require 4 to 8 inches of depth. Furthermore, per safety codes such as NFPA 13 standards, sprinkler heads require a minimum 18-inch clearance zone beneath the deflector to ensure proper discharge patterns, restricting high storage or tall built-in joinery below.
• Electrical and Recessed Lighting: Recessed architectural downlights require between 4 and 8 inches of housing depth above the drywall. Cable trays and junction boxes add another 4 to 6 inches where high-density routing is required.
• Plumbing and Condensate Lines: Gravity-fed waste lines and air conditioning condensate drains require a continuous downward slope of 1/8 to 1/4 inch per linear foot. Over a 40-foot run across a floor plate, this slope consumes 5 inches of vertical depth before accounting for pipe diameter and fittings.

When these utilities cross over one another—such as a sprinkler branch running beneath a primary HVAC duct which itself sits under a concrete beam—the cumulative vertical drop can exceed 30 inches.

Why Do Clients Lose Ceiling Height During Construction?

Clients lose spatial height during construction when architectural planning fails to coordinate structural beam depth with mechanical duct routes before framing and installation begin.

In our experience with residential and commercial builds, spatial height loss rarely happens by intent; it happens through sequential installation without 3D coordination. When trades work in isolation, the first installer (often the plumbing contractor) places pipes in the easiest path. The HVAC contractor then routes large rigid ductwork beneath those pipes, and the electrician runs conduit beneath the ducts. By the time the ceiling framing contractor arrives, the lowest point of the mechanical web forces the entire drywall ceiling down by 6 to 12 inches lower than originally drawn.

This outcome occurs when drawings show generic ceiling heights without verified mechanical layouts. Owners who signed off on a 10-foot ceiling in schematic design are presented with an 8-foot-8-inch ceiling during site visits, accompanied by unsightly drywall bulkheads created to cover uncoordinated duct transitions.

How Can Early Architectural Planning Protect Finished Ceiling Height?

Architects protect finished ceiling heights by establishing dedicated MEP service corridors, routing major ductwork through structural web openings, and specifying recessed or exposed distribution early in schematic design.

Preserving vertical volume requires rigorous coordination before construction starts on site. Our team typically recommends four architectural strategies to maintain maximum usable height:

• Zone-Based Ceiling Heights: Rather than dropping the ceiling uniformly across an entire floor plate, we design dropped ceilings specifically in service zones—such as hallways, bathrooms, and closets—where ductwork and fan coil units are concentrated. Primary living rooms, offices, and galleries retain their full 10-foot or 11-foot volume, flanked by secondary spaces with dropped 8-foot-6-inch ceilings.
• Structural Penetrations and Web Openings: In steel frame or engineered timber structures, ductwork can pass directly through pre-punched beam webs rather than underneath them. In post-tensioned concrete slabs, early mechanical planning aligns major trunk lines parallel to structural beams to eliminate crossover points.

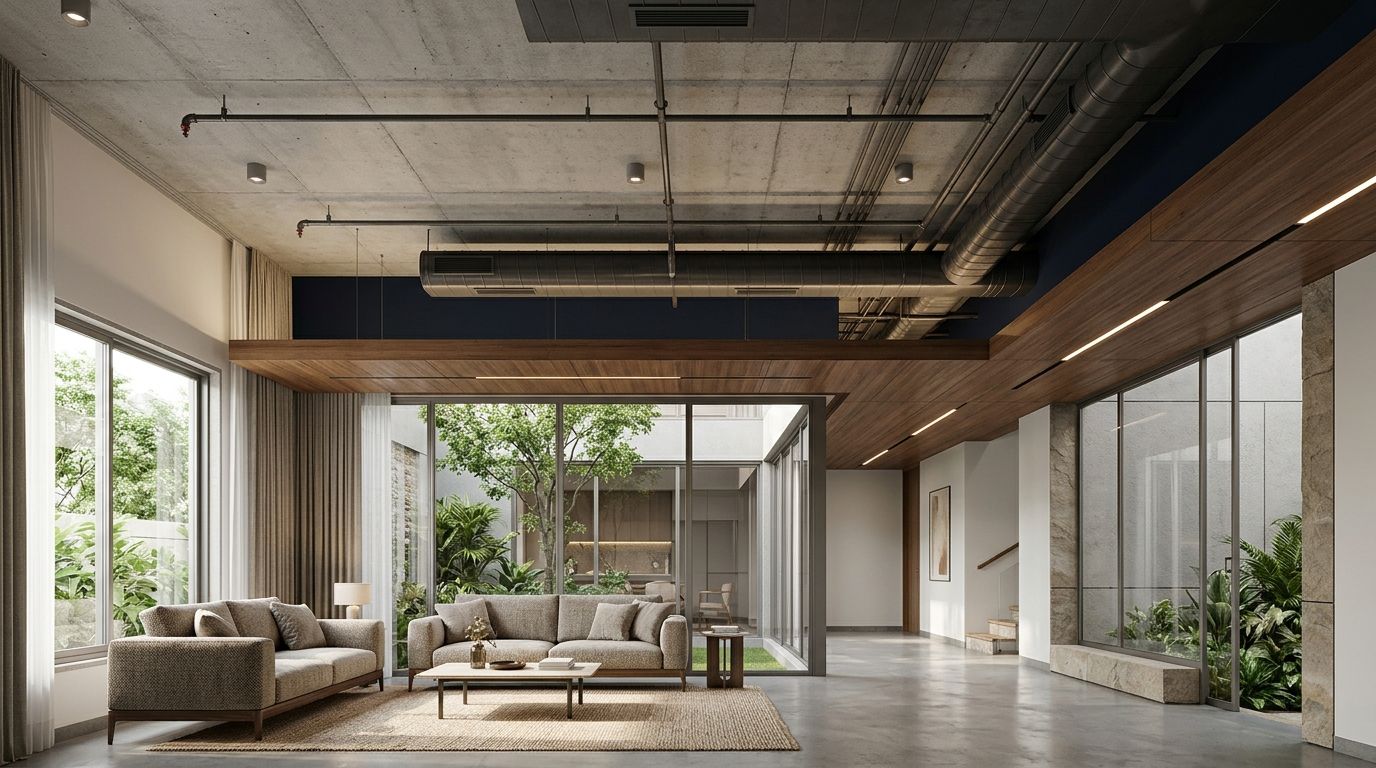

• Integrated Exposed Mechanical Systems: For contemporary commercial spaces and modern industrial-style residences, omitting the drywall ceiling entirely recovers 6 to 10 inches of plenum space. However, this requires clean duct layout, painted equipment, and deliberate lighting design, which we explore across our projects.
• BIM Spatial Clash Detection: Utilizing 3D Building Information Modeling (BIM) during design allows architects and mechanical engineers to test cable tray routes, duct intersections, and drain pitches virtually, eliminating unexpected drops before construction contracts are finalized.

To learn more about how spatial volume and technical coordination shape tailored environments, explore our overall approach to architecture services.

Common Mistakes to Avoid

The most costly mistake in ceiling design is measuring volume solely from architectural section drawings without verifying structural beam soffits and mechanical crossover depths.

• Equating slab-to-slab dimensions with finished ceiling height: Always subtract at least 18 to 24 inches from the structural height for a realistic planning estimate.
• Ignoring drain pitch requirements: Forgetting that waste pipes must slope across floor plates often forces sudden ceiling drops near columns and wet walls.
• Failing to check sprinkler clearance rules: Placing high shelving or tall millwork within 18 inches of sprinkler heads violates safety codes and causes inspection failures.
• Neglecting FCU access panels: Concealing fan coil units (FCUs) without incorporating flush, accessible service hatches forces contractors to cut into finished plasterboard during routine maintenance.
• Selecting deep recessed light fixtures late in the process: Choosing luminaires that require 8 inches of clearance after framing a ceiling designed for 4-inch housing causes spatial conflicts across entire rooms.

Frequently Asked Questions

What is the ideal floor-to-floor height for modern residential or commercial spaces?

A floor-to-floor height of 11 to 12 feet (3.35 to 3.65 meters) typically yields a clean 9 to 10-foot finished ceiling height after accounting for structural slabs and MEP services. In high-end residential applications, target slab-to-slab dimensions of 12'-6" to allow generous 10-foot finished ceilings across primary living areas.

How much clearance does an HVAC duct system need above a dropped ceiling?

Standard commercial and residential HVAC ductwork requires 12 to 20 inches of clear plenum height, including insulation and hanger bracket clearances. Where space is tightly constrained, switching from round or square ducts to low-profile flat oval or rectangular ductwork can reduce required depth to 8–10 inches.

Can sprinkler pipes be hidden without lowering the entire ceiling?

Yes, routing branch lines between structural floor joists or within targeted perimeter bulkheads allows sprinkler heads to remain concealed or flush without dropping the main ceiling plane. Concealed sprinkler heads feature cover plates that sit flush with the ceiling plasterboard, painting over seamlessly.

What is the minimum recommended ceiling height for luxury residential projects?

Modern luxury residential spaces generally target minimum finished ceiling heights of 9'-6" to 10'-6", requiring structural slab heights of at least 11'-6" to 12'-6". Rooms with high floor areas benefit proportion-wise from taller ceilings to avoid feeling compressed.

How does exposed ceiling design affect clear spatial height?

Leaving mechanical services exposed gains 6 to 12 inches of vertical volume, but requires rigorous routing layout, painted ductwork, and enhanced acoustic treatment. On projects where we have managed this directly, exposed layouts successfully expand vertical perception while maintaining rigorous technical performance.
